Water Borewell Machine Price In India,Trailer Mounted Water Well Drilling Rigs For Sale,Water Drilling Machine Price In India

1 Set
MOQ
Water Borewell Machine Price In India,Trailer Mounted Water Well Drilling Rigs For Sale,Water Drilling Machine Price In India
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Construction Works
Showroom Location: None
Condition: New
Type: Rotary Drilling Rig
Power Type: Diesel
Usage: Water Well
Voltage: Diesel Engine Driven
Dimension(L*W*H): 2.4*0.8*1.3m, 2.4*0.8*1.3m
Weight: 750kg
Warranty: 2 Years
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 2 Years
Core Components: Pump, Engine
Key Selling Points: Competitive Price
Drilling Diameter: 300mm
Drilling Depth: Max.230m
After-sales Service Provided: Overseas Service Center Available, Video Technical Support, Free Spare Parts, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
Name: Multifunction Hydraulic Drilling Rig
Product Name: Water Drilling Machine Prices
Application: Water Wells
Drilling Depth: 30m
Feature: High Drilling Efficiency
Model: HW230S
Drilling Diameter: 75-325mm
Engine: Diesel Power
Local Service Location: None
Certification: ISO9001 CE
Basic Infomation
Certification: ISO9001 CE
Model Number: HW230S
Payment & Shipping Terms
Packaging Details: wooden case
Product Description
Product Description

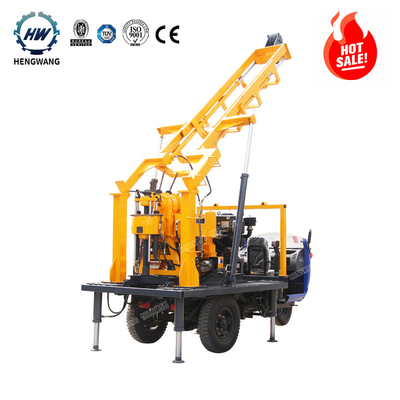

Hydraulic Drilling Rig

* Tricycle drilling rig is designed to meet the needs of high speed, high efficiency and high mobility in field drilling. The machine is reasonable in structure, simple in operation, convenient in maintenance and transportation, and can be hoisted without crane after being transported to the working site. It is suitable for geological survey exploration, basic exploration of roads and high-rise buildings, various structural inspection holes on concrete, river embankments, subgrade grouting hole and direct grouting , civil water wells and ground temperature central air conditioning.
Contact Us
Related Model
Application
Specification
Whole machine parameters
Model
HW-230S
Drilling depth(m)
230
Open hole dia. (mm)
500(Soil), 273(Rocks)
End hole dia. (mm)
75
Drill rod dia. (mm)
42, 50, 60
drill angle (°)
90-75
Matching power (kW)
15
Weight (kg)
3000
Dimension（L*W*H） (m)
4*1. 7*2. 3
Spindle
Speed (r/min)
64/128/287/557
Stroke (mm)
450
Tricycle chassis
Model
wuzheng
7YP-1475D1
Emission standard
GB19756-2005 (Ⅱ)
Rated power (kW)
18. 3
Rated speed (r/min)
2200
Drill Tower
Rated load (ton)
18
Effective height (m)
6.5
Mud pump
Flow (L/min)
160
Max. pressure (Mpa)
1.3
reciprocal times /mi n
165
Hose
Inlet hose dia. (mm)
51
Outlet hose dia. (mm)
32
Advantages
Products Details
* 1.Tricycle drilling rigs are multi-function hydraulic spindle Rotary drilling rig, HW—230S model.

* 2.Vehicle chassis Wuzheng tricycle 7YP-1475D1, the drive system , winch and mud pump and other important accessories installed on the chassis, the layout is reasonable and compact, easy to operate.

* 3.Equipped with BW-160 or BW-250 mud pump, high pressure ,big flow , it ensures to reach drilling depth and diameter.

* 4.Drilling rig self-equipped with mobile devices, drilling rig can be achieved before and after the host itself to facilitate
the operation of the wellhead.

* 5.Drilling tower is hydraulic landing manual folding tower, easy to operate, safe and convenient.
