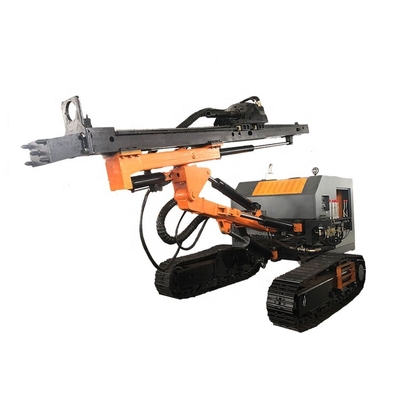

Surface Rock Drilling Machine
Feature:
1. Using the computer optimization design, the vehicle structure is compact, good appearance.
2. According to the function layout, install valve, handles, convenient operation.
3. Adopts hydraulic transmission, Energy saving, high efficiency, low noise and low cost.
4. Special structural design, can achieve flank holes drilled chisel.
It's main applied to quarry,railway,hydropower,open pit mine,and construction and others projects deep hole in the rocking drilling operations arbors.
Can be horizontal,vertical,tile,and other parties blast hole bits,pre-hole ,bole hole.
Specifications:
Working air pressure | 0.7-1.6 Mpa |
Exhaust flow | 8-20 m3/min |
Borehole diameter | 90-150mm |
Borehole depth | 30~60m |
Drill Rod | 3000mm |
Drill rod Diameter | A 60mm , B76mm |
Gradeaility | 30° |
Driving speed | 2-3.2 km/h |
Rotary speed | 0-80 r/min |
Rotary turque | 1970 N.M |
Whole machine weight | 5200kg |
Dimension | 5100*2260*2550mm |
Supporting power | Yuchai YC4D80 YC 4D952-K20T Electric engine Y55kw-4P |
Dry dust collection device | Apolegamy |
Enhance driving motor | Apolegamy |
| Q1: Are you factory or trade company? |
| A1: We are factory. And we have ourselves trading company. |
| Q2: Which trade term can you accept? |
| A2: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc. |
| Q3: Warranty terms of your machine? |
| A3: One year warranty for the machine and technical support according to your needs. |
| Q4: Will you provide some spare parts of the machines? |
| A4: Yes, of course. |
| Q5: What about the voltage of products? Can they be customized? |
| A5: Yes. The voltage can be customized according to your equirement. |
| Q6: Which payment term can you accept? |
| A6: 30% T/T in advanced, 70% T/T against the B/L copy. |
| Q7: How long will you take to arrange production? |
| A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days. |
| Q8: Can you accept OEM orders? |
| A8: Yes, with professional design team, OEM orders are highly welcome. |
