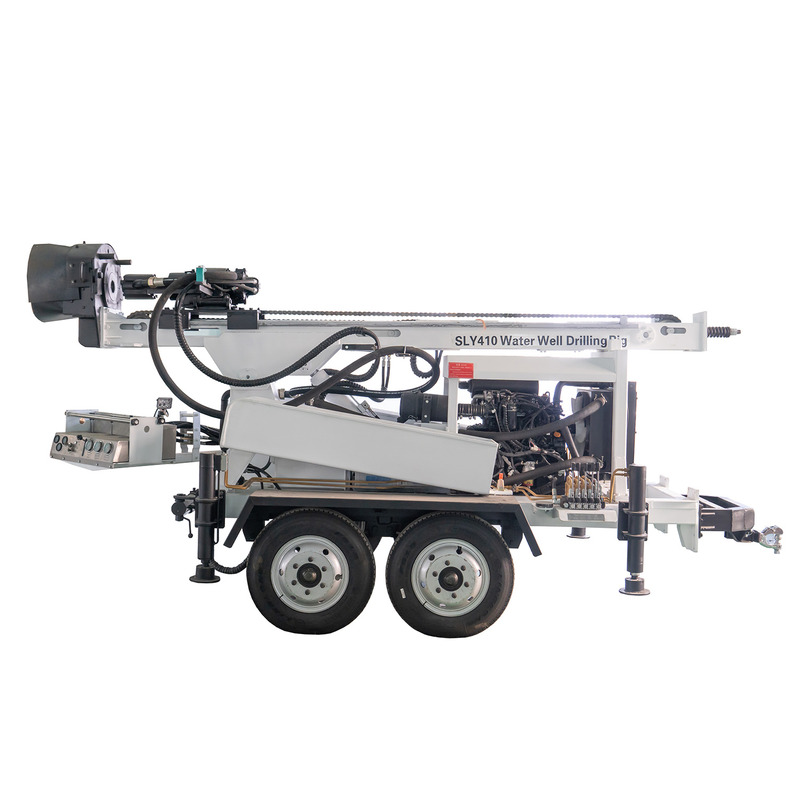

Hydraulic Trailer Mounted Water Borewell Drilling Rig SLY410
SLY400 Water Well Drilling Rig is lightweight, high efficient, multi-functional drilling rig, which can use air, foam or mud rotary for drilling according to different textures. It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration holes , in particular in drilling geothermal heating hole, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering requirements.
Technical parameters
|
Bore diameter(mm) |
90---200 |
|
Bore depth(m) |
150 |
|
Walk speed(km/h) |
<20 |
|
For rock(F) |
6-20 |
|
Air pressure(Mpa) |
1.05-2.46 |
|
Air consumption(m³/min) |
10-20 |
|
Once promotion(mm) |
2000 |
|
Maximum height from the ground(mm) |
320 |
|
Rotation Speed(r/min) |
0-70 |
|
Rotation torque(NM) |
2200 |
|
Dimension(L*W*H)(mm) |
5500*2100*2400 |
|
Host power(Kw) |
45 |
|
weight(Kg) |
3450 |
Cheapest price small mini hydraulic portable water well drilling rig trailer mounted with tractor can also be used for water wells, water conservancy, power plant, open mining, road building and other blasting hole constructions .
Shandong Longye Machinary Co.,Ltd. is a manufacturer,specialized in the production of blasting drilling rig,solar pile driver,water well drilling rig and accessories such as portable screw air compressor,drill pipe,drill hammer,drill bit,etc.Our company is a backbone enterprise in the industry. Our company is located at the foot of Mountain Tai which has the reputation of "Chief of the Five Sacred Mountains", neighboring to Beijing-Shanghai High-speed Way, with convenient transportation and excellent location. Your satisfaction is our promise. Our company covers an area of 35,000 square meters, and has more than 160 employees, including 20 engineering technicians, who all are specialized drilling rig mechanical design talents. Our company has more than 30 sets of advanced CNC machining equipment and more than 10 sets of special processing equipment. Our company has our own heat treatment production workshops and surface treatment equipment. On the basis of advanced production equipment and more than 10 years of experience, our company has developed and produced three series of products, including high, medium and low-grade air pressure equipment. 15 kinds of products sell well throughout China, Russia, Kenya, Brazil, India and some other countries in Europe.
| solar pile driver >> | blasting drilling rig >> | water well drilling rig>> | anchor drilling rig >> |
| portable screw air compressor >> | drill pipe >> | drill hammer >> | auger drill pipe >> | drill bit >> |
Q1: What’s your delivery time?
A: 15 days to produce, within 3 days if in stock.
Q2: What’s methods of payments are accepted?
A: We agree T/T ,L/C , One touch , West Union ,Money Gram ,Paypal.
Q3: What about the shipments and package?
A: 40' container for 2 sets, 20' container for 1 set,
Machine in export packing, spare parts in standard export wooden box.
Q4: Have you got any certificate?
A:We have got ISO,CE certificate.
Q5: How to control the quality?
A: We will control the quality by ISO and CE requests.
Q6: Do you have after-sale service and warranty service ?
A: Yes, we have.We can supply instruction for operation and maintenance.If necessary, we can send our engineer to repair the machine in your company.
Warranty is one year for the machine.
Q7: Can I trust your company ?
A: Our company has been certificated by Chinese government ,and verified by Alibaba Trade Assurance. 100% refund of the Trade Assurance Amount .Alibaba can guarantee all of you payment .Just order from US !
