DTH rigs with air compressor hammer drilling rig for hard rock borewell drilling machine cost

1.0 Sets
MOQ
DTH rigs with air compressor hammer drilling rig for hard rock borewell drilling machine cost
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Manufacturing Plant, Construction Works , Energy & Mining
Showroom Location: None
Condition: New
Type: Rotary Drilling Rig
Power Type: Diesel
Usage: Water Well
Voltage: Diesel Engine Driven
Dimension(L*W*H): 2.75*0.95*1.6m
Weight: 2600kg
Warranty: 2 Years
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 2 Years
Core Components: Pump, Engine
Key Selling Points: Automatic
Name: DTH Rigs Hammer Drilling Rig Borewell Drilling Machine
Product Name: DTH Rigs Hammer Drilling Rig Borewell Drilling Machine
Application: Water Wells
Drilling Depth: 200m
Feature: High Drilling Efficiency
Color: Customised
Model: HQZ220T
Drilling Diameter: 110-245mm
Engine: Diesel Power
Spindle Speed: 570 R/min
Local Service Location: None
After-sales Service Provided: Video Technical Support, Free Spare Parts, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
Certification: ISO CE
Basic Infomation
Certification: ISO CE
Model Number: HQZ220T
Payment & Shipping Terms
Packaging Details: non package
Supply Ability: 1000 Set/Sets per Month Tractor Mounted Water Well Drilling Rig,Tractor Mounted Water We
Product Description
Product Description
1.Tractors pneumatic water well drilling rig according to the user needs could be matched with different horsepower tractor chassis, different specification drilling tools , air compressor, DTH impactor and blast pipe, apply for variety of specifications.
2.Tractor pneumatic wells drilling machine is applicable to civil engineering drilling, geothermal drilling, with large diameter and deep drilling footage, fast, mobile and flexible, wide use of regions advantages, combined the advantages of drilling machine and tractor.

Large drill hole diameter
Remote wire control device
Operate table ,simple and convenient
Tractor mobile way ,easy to transport from one place to another place
Technical Parameters
Model
HQZ220T
Drilling hole diameter
Ø110-245mm
Drilling depth
80-200m
Drilling Speed
20-30m/h
drilling direction
0°
Power
40HP
Working Air Pressure
1.3-2.7Mpa
Air consumption
10-30m³/min
Adapt To Rock Hardness
F=6-20
Sliding Distance
1500mm
Rotating speed
0~78
Products Details

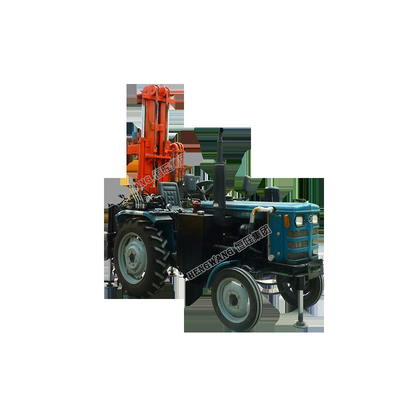

Tractors pneumatic water well drilling rig
