Home /Products/Tractor Borewell Machine/Construction works   Portable borewell CSMG50 dth drilling rig for soil testing

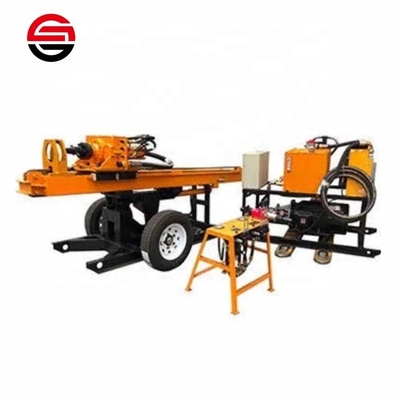

Construction works   Portable borewell CSMG50 dth drilling rig for soil testing

1 Set
MOQ
$3,200.00(1 - 2 Sets) $3,000.00(>=3 Sets)
Price
Construction works   Portable borewell CSMG50 dth drilling rig for soil testing
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Construction Works , Energy & Mining
Showroom Location: None
Condition: New
Type: Rotary Drilling Rig
Power Type: Electric
Usage: Construction
Voltage: 380V/Customized
Dimension(L*W*H): 2720*850*900mm
Weight: 750kg
Warranty: 6 Months
Local Service Location: None
Certification: ISO&CE
Color: Yellow/blue/custom
Air Consumption: 9~12m3/min
Working Pressure: 10~15bar
Drilling Depth: 10~100m
Rotation Torque: 1700~6800N.m
Max.Lift Force: 27.5~65kN
Basic Infomation
Certification: ISO&CE
Payment & Shipping Terms
Packaging Details: Nude packing, or wooden box
Supply Ability: 100 Set/Sets per Month
Product Description
Recommend Products
We can supply all series of drilling equipment and drilling tools
Our products use high-quality raw materials, utilizing advanced craft technologies and imposing strict quality inspection.
Product range covers:Down the hole hammer and bits(dth hammers and dth bits),drill pipes, threaded drilling bits, reverse circulation hammers and bits, shank adapters and coupling sleeves, drilling rig, air compressor and spare parts for drill equipment.

All products are interchangeable with various products manufactured by Atlas Copco.
Products Description
Powerful hydraulic drive,easy and reliable
Structure well-knit,easy to move
Can achieve double-line drilling according to the requirements
Operation panel can be far away the drill hole,protect operator

Half hydraulic

Full hydraulic

Model
CSMG40
CSMG50
CSMG70
CSMG90A
Air exhaust(m³/min)
9~12
9~12
9~12
9~12
Hole diameter(mm)
90~150(rock)
90~180(rock)
90~230(rock)
90~250(rock)
Drill depth(m)
10~60
10~60
25~70
25~100
Drill rod(mm)
Φ76*1500
Φ89*1500
Φ76*1500 Φ89*1500
Φ76*1500
Φ89*1500
Φ76*1500
Φ89*1500
Rotary torque(N.m)
1700
3600
5200
6800
Lifting force(kN)
27.5
45
65
65
Hydraulic pressure(Mpa)
16
16
16
16
Electric motor(kw)
7.5+4kw
22
25
30
Weight(kg)
750
1100
1300
1400
Dimension(mm)
1400*730*1200
1400*730*1200
1400*730*1200
1400*730*1200
Application
Quarrying
Anchoring
Product packaging
Spare parts
