Home /Products/Horizontal Borewell Machine/Construction works   Cheap Borewell Borewell And Ore Borehole Rotary Mobile Outdoor Auger DTH For Mining Quarries Diameter 110-140mm

Construction works   Cheap Borewell Borewell And Ore Borehole Rotary Mobile Outdoor Auger DTH For Mining Quarries Diameter 110-140mm

1 Set
MOQ
$55,000.00(1 - 4 Sets) $45,000.00(>=5 Sets)
Price
Construction works   Cheap Borewell Borewell And Ore Borehole Rotary Mobile Outdoor Auger DTH For Mining Quarries Diameter 110-140mm
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Construction Works , Energy & Mining, Other
Showroom Location: Philippines, Brazil, Peru, Indonesia, Russia, Thailand, Kenya, Argentina, Chile, Algeria, South Africa, Kyrgyzstan, Nigeria
Condition: New
Type: Rotary Drilling Rig
Power Type: Diesel
Usage: Ore
Voltage: 24V
Dimension(L*W*H): 5700*2130*2200mm
Weight: 5500 KG
Warranty: 1 Year
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Pressure Vessel, Pump, Engine
Key Selling Points: Long Service Life
Drilling Diameter: 100mm
Drilling Depth: Max.30m
Mobility: Crawler
Key Words: Orewell & Ore Driller Drilling Machine
Drilling Method: Down The Hole (DTH)
Drill Hole Range: 110-140mm
Drill Hole Depth: 30m
Pull Up Force: 45kN
Feed Material: Steel
Max. Gradeability: 30
Engine Brand: YUCHAI YC4DK100
Engine Type: 4-cylinder
Emission Standard: NSIII/EU StageIII
Local Service Location: Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Thailand, Kenya, Chile, Algeria, Bangladesh, South Africa
After-sales Service Provided: Video Technical Support, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
Certification: CE
Basic Infomation
Certification: CE
Payment & Shipping Terms
Packaging Details: Ro-Ro Shipment/ 20" container/40" Container
Supply Ability: 2000 Set/Sets per Month
Product Description

Mobile DTH Rotary Borewell & Ore Driller Drilling Machine NSIII/EU stageIII Mobile Cheap for mining and quarries dia 110-140mm

Contact: Christine

Title: Zenvan Group Sales Manager

Tel/Wechat/Whatsapp: +8615536105963

Skype:christineblcu

Product Description

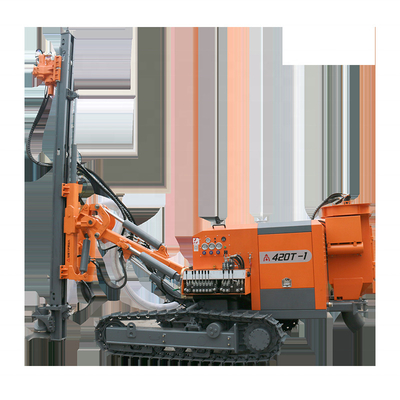

Hydraulic Integrated DTH Surface Borehole Drill Rig 420T
This series drill rig is equipped with European TOP brand key hydraulic components can make sure the reliable performance and lower maintenance cost. With leveling function and dual speed walking motor, improves the climbing performance can adapt to complex terrain conditions, can drill vertical holes for slopes.
Engine: YC4DK100,73.5KW/100HP;
Drill Hole Depth: 30m;
Drill Hole Diameter: 110-140mm;
Item Unit ZGYX420T ZGYX421T-1
Main application Limestone, quarries, surface mining, aggregate quarries
Drill Method / DTH DTH
Drill Tube Size mm 68/76 x3000 68/76 x3000
Drill Hole Size mm 110-140 110-140
Hole Depth m 30 30
Max. Rotation Torque Nm 2500 2500
Feed Force KN 20 20
Pull up Force KN 45 45
Dimension mm 5100x2324x2550 5700x2130x2200
Weight kg 5000 5500
Engine / YC4DK80 YC4DK100
Fuel / Diesel Diesel
Rated Power KW/HP 59/80 73.5/100
Engine Speed rpm 2200 2600
Engine Type / 4-Cylinder 4-Cylinder
Displacement L 3.621 3.621
Aspiration / Turbo Turbo & intercooler
Max. Torque N.m 335 420
API Class / CF-4 CF-4
Emission Standard / NSIII/EU III NSIII/EU III
Battary V 24 24

Air Compressor Matched (Recommended):

Company Information

FAQ

Q1: Are you factory or trade company?

A1: We are factory Distributor for oversea Market.
Q2: What the exactly address of your factory?
A2: Our factory is located in #Xuzhou City, Jiangsu Pro, China.
Our Export Office is located in 2nd Floor, Building E, FUXING City, LongHua Distric, HaiKou, HaiNan Pro, China.

Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.

Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.

Q5: Which payment term can you accept?
A5: 30% T/T in advanced, 70% T/T against the B/L copy.

Q6: How long will you take to arrange production?
A6: Popular model we have in stock, if not, we can finish production around 15~20 days.

Q7: Which trade term can you accept?
A7: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
