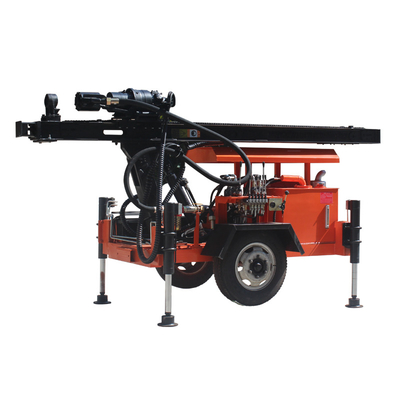

trailer mounted hydraulic portable water borewell drilling rig SLY100
This well digger machine has the character of light,high efficiency,multi-function.According to different conditions,it uses air,foam or slurry to rotate and drill.
Application
SLY100 drilling rig using new hydraulic technology, with gas consumption is low, rotary torque, variable-bit-shift whole and convenient features, this product is mainly used for mining, road building and other Rock and water well blasting hole drilling.
Main technical parameters
|
Total Weight (kg) |
1700 |
|
Drilling diameter (mm) |
90---140 |
|
Dimension (L * W * H)(mm) |
4375*1650*1920 |
|
Drilling depth (m) |
120m |
|
Once promotion distance (mm) |
2000 |
|
Working pressure (Mpa) |
0.5---0.7 |
|
Torque(N.m) |
1600 |
|
Speed(r/min) |
90 |
|
Air consumption (m³/min) |
7.2---12 |
|
Host Power (Kw) |
16.2 |
|
For rock (f) |
6----20 |
|
Hydraulic pump |
420-420 |
|
Hydraulic motor torque (NM) |
2000 |
|
Impact frequency (r/min) |
800 |
Construction Site
portable water well borehole drilling machine
This well digger machine has the character of light,high efficiency,multi-function.According to different conditions,it uses air,foam or slurry to rotate and drill.
Application
Construction Site
portable water well drilling rig SLY100
This well digger machine has the character of light,high efficiency,multi-function.According to different conditions,it uses air,foam or slurry to rotate and drill.
Application
water bore drilling rigs is widely used in industrial and agriculture water project,drill water well,inspect well and other exploration borehole.which especially used for drilling geothermal heating stove.
Technical parameter
water well borehole drilling rig
Hole diameter:127-254mm
hole depth:213m
Working Pressure:1.05-2.46Mpa
Air consumption:16-30m3/min
drill rod length:3m
drill rod diameter:76mm
Dimension:5800mm*2040mm*3200mm
climb ability:25 degree
walking speed:2.5km/h
total weight:5.7
axial pressure:40820N
lifting force:68040N
slow lift:8m/min
slow forward:16m/min
quick lift:26m/min
quick forward:48m/min
rotation torque:3400Nm
Rotation speed:130r/min
quick lift:26m/min
