Max.Processing size of Glass | 2200mm(L)*3000mm(W) |
Glass Thickness | 3‐40mm |
Hole Diameter | φ5~φ110mm |
Height of Working Table | 1000mm |
Weight: | 950kg |
Power: | 9KW |
Size | 2200*2000*1600mm |

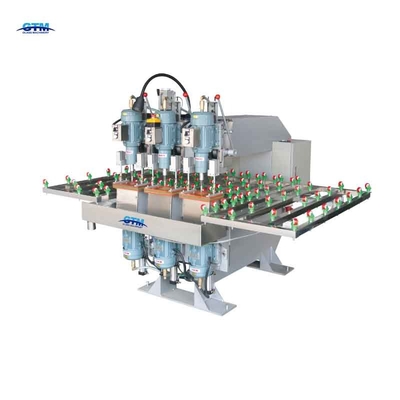

Product advantage | 1. GJ3 is equipped with threesets of drill bitspindles, with high production efficiency; 2. Allows for 3 different size drill bits to be installed at one time, for most of the holes on glass; 3. The foot print of one machine instead of three single drilling machines; 4.Simple structure leads to simple maintenanceand very easy operation; 5. Use it as a tool but not a complex machine, no need for a professional technician to maintain it. 6. Stable performance, simple operation, no vibration,low noise, and simple adjustment; 7. Top heads are manual while bottom heads are automatic, can be used for scattered and mass production; 8. Each station has the option of only using the glass clamping function which allows you to use the drilling machine as a working table to cut, notch or grind the glass. |
