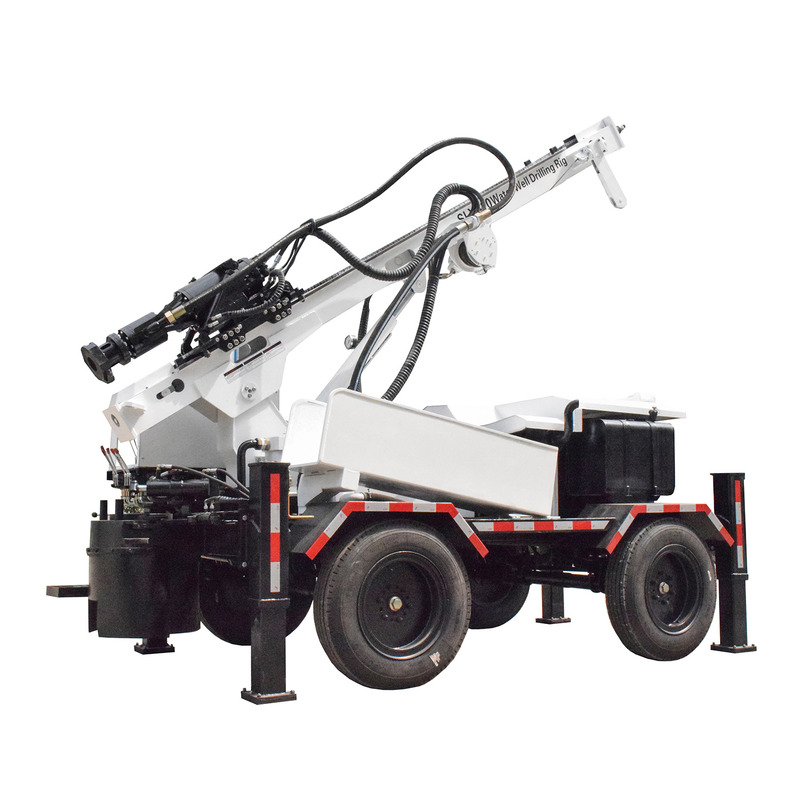

SLY510 high efficiency trailer mounted water borewell drilling rig
weight, efficient, multi-purpose drilling equipment, which can use air, foam or mud rotary for percussive drilling according to different textures. It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes, in particular, in drilling hole for geothermal heating it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connectedwithavarietyofengineeringrequirements
Main technical parameters.
|
Technical parameters and specification |
|
|
Drilling diameter (mm) |
100-300 |
|
Drilling depth (m) |
260 |
|
Work Pressure(Mpa) |
1.05-3.0 |
|
Consumption (m³/min) |
16-30 |
|
Drill pipe length (m) |
2 |
|
Drill pipe diameter (mm) |
76 |
|
Dimensions(mm)(L*H*W) |
5425*2250*2470 |
|
Footage efficiency(m/h) |
5-20 |
|
Travelling speed(Km/h) |
0-2.5 |
|
Total weight(t) |
6 |
|
Feed systems |
|
|
Axle pressure (N) |
40820 |
|
Lifting power (T) |
6.5 |
|
Rotary torque (Nm) |
3900 |
|
rotary speed |
0-130 |
|
Host Power (Kw) |
87 |
|
Mud pump |
BW450/5 |
|
Flow rate |
450L/min |
Shandong Longye Machinary Co., Ltd. is specialized in the production of hydraulic pressure down-hole drilling rigs, engineering drills and water well drilling rigs. Our company is a backbone enterprise in the industry.
Our company is located at the foot of Mountain Tai which has the reputation of "Chief of the Five Sacred Mountains", neighboring to Beijing-Shanghai High-speed Way, with convenient transportation and excellent location. Your satisfaction is our promise.
Our company covers an area of 35,000 square meters, and has more than 160 employees, including 20 engineering technicians, who all are specialized drilling rig mechanical design talents.
Our company has more than 30 sets of advanced CNC machining equipment and more than 10 sets of special processing equipment. Our company has our own heat treatment production workshops and surface treatment equipment.
On the basis of advanced production equipment and more than 10 years of experience, our company has developed and produced three series of products, including high, medium and low-grade air pressure equipment. 15 kinds of products sell well throughout China, Russia, Kenya, Brazil, India and some other countries in Europe.
