Main Technique Specification
| Model No. | SJZ-350 | SJZ-500F |
| Main power | 4kw | 7.5kw *2 |
| Drilling rod diamter | 38mm/42mm | 89mm |
| Drilling diameter | 50-220mm | 50-400mm |
| Drilling depth | Max 100m | Max 130m |
| Hoister | 1.3kw | 2kw |
| Charger | 380v | 380v |
| Dimension | 0.7*0.7*2.4M | 0.8*0.8*2.4M |
| Weight | 140kgs | 180kg |
| lifting capacity | 800kg | 850kg |
| Drilling speed | 90rpm | 100rpm |
| Geological formation | soil, soft earth, small rock | soil, soft earth, small rock |
| application | wate well for fresh water, farm irrigation | wate well for fresh water, farm irrigation |
|
Machine Parameter |
Model |
MT100 |
|
Drilling depth |
150m |
|
|
hole diameter |
Max 400mm |
|
|
Drill rod |
1.5m*50mm |
|
|
Diesel engine Power |
13.2KW |
|
|
Machine weight |
350kg |
|
|
machine dimensions |
2.1x1.1x1.9m |
|
|
Lifting capacity(kg) |
2000 |
|
|
Lifting height |
2.5m |
|

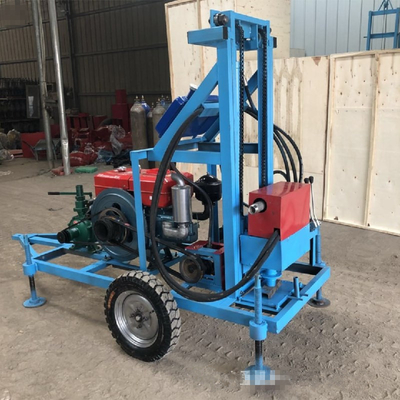

Model |
YH150 |
|
|
Principle |
Positive Cycle |
|
|
Hydraulic Power |
10Hp-Diesel Engine |
|
|
Centrifugal Pump Power |
8Hp-Diesel Engine |
|
|
Max Drilling Depth |
150m |
|
|
Max Drilling Diameter |
420mm |
|
|
Drilling Pipe |
51mm diameter, 1.5m/piece |
|
|
Drilling Bit |
Alloy Steel For Soil |
one small bit (60mm,90mm) +one big bit (160-300mm) |
|
PDC For Rocks |
diameter should be less than 150mm |
|
|
Other Parts For One Complete Machine |
High pressure water pump-1 unit |
|
|
High pressure water pipe-5m |
||
|
Tools,seat,oil seal,English manual,Etc |
||
|
Machine size |
93cm * 70cm*180cm |
|
|
Machine weight |
320kg |
|
|
Drilling method |
rotary |
|
|
Size unfolding height |
2.5m |
|
|
Drilling tools includes |
Diesel engine, 150m rods, 2 3-wing bit, high pressure water pump, 5m water pipe, manual |
|
