Home /Products/Borewell Lifting Machine/Waterproof / Waterproof 800m Deep Borehole Water Well Inspection Borewell Camera

Waterproof / Waterproof 800m Deep Borehole Water Well Inspection Borewell Camera

1.0 set
MOQ
Waterproof / Waterproof 800m Deep Borehole Water Well Inspection Borewell Camera
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: LGJ-8Y
Warranty: 1 Year For Main Machine
Special Features: Waterproof / Weatherproof, PAN-TILT
Sensor: CCD
Style: PTZ Camera, Dual Camera, Single Camera
Function: Two-way Audio, PAN-TILT, Waterproof / Weatherproof
Video Compression Format: H.264
Data Storage Options: SD Card
Application: Outdoor
Customized Support: Online Technical Support, Customized Logo, OEM, ODM
Depth: 100m-800m
Angle View: 360 Degree
Probe Pressure: 20Mpa,2000m
Certification: CE, ISO
Keyword: CCTV Inspection Camera Downhole Camera
Camera Box: ABS Plastic Case
Display Screen: 7"10'' 12'' High Brightness LED Monitor
Camera Diameter: 90mm, 75mm, 42mm, Etc.
Camera Type: PTZ Camera
Fuction: Inspect Water Holes
Basic Infomation
Certification: CE, ISO
Model Number: LGJ-8Y
Payment & Shipping Terms
Packaging Details: Wooden case
Supply Ability: 500 Set/Sets per Month
Product Description
Products Description

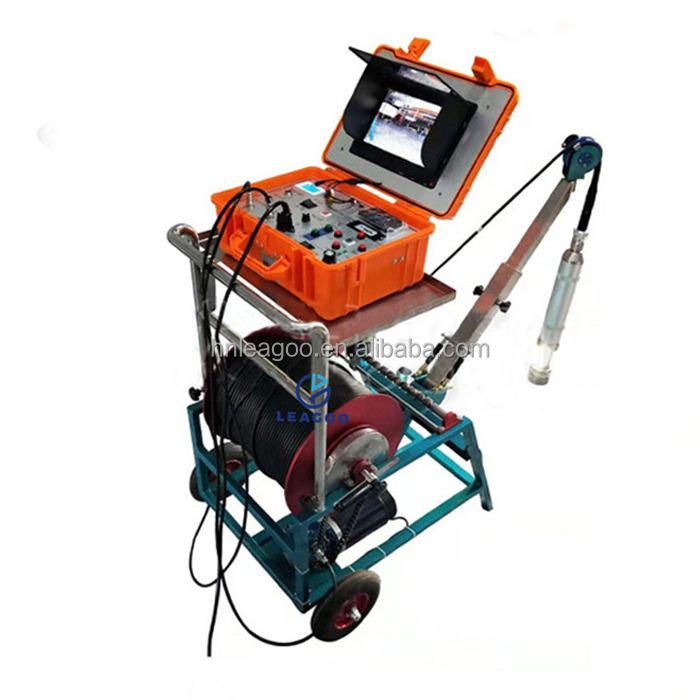

800m Deep Drilling Hole Water Well Inspection Borewell Camera

The borehole camera is applied for engineering hydrogeology, oil filed and geological prospecting industry. It observes various abnormalities and defects in boreholes for maintaining water well easily.
Features
Deep Drilling Hole Water Well Inspection Borewell Camera
1. Max 800m inspection depth, with meter counter.
2. Control box equipped with 7 " LED screen, 10'' & 12'' for choice.
3. PTZ camera and dual camera with different diameters for choice.
4. Electric and Manual integrated winch , detachable .
Technical Parameters
Main Control Box
* ABS Plastic control system
* Voltage input: 220V(12V is optional, max depth 600m)
* Depth interface: connect depth
sensor
* Probe interface: connect probe, transmit video and power
* Data interface: write well position number and calibrate depth by itself
* Video system: ultra-high definition SD card video recorder, 16G SD card video system, maximum support 32G
* Depth data: setting depth to Zero before working, depth real-time display on monitor .
* Monitor: 7”(10” &12'' for optional) high brightness LED monitor.

Single Camera Probe

* Dia.: φ90mm, φ75mm, φ42mm, length: 30cm-34cm
* Camera material: stainless steel housing
* Camera pixel: SONY CCD camera, fully automatic photosensitive system
* Lens angle: pan 360 degree rotation, tilt 180 degree rotation, LED & focus adjustable
* Camera light: φ90mm camera probe, 12 front bright bead, rear 16 LED strong light bead; φ75 with front 8 bright bead; φ42 with 6 bright bead.
* Brightness focal length adjustment: manually controls the direction and angle of the camera, the brightness of the light source and focas adjustment for clear video image, 5 levels of dimming
* Probe pressure: max 20MPA, depth up to 2000 meters.

Dual Camera Probe

*Dia.: φ75mm, φ50mm, φ41mm, length: 50cm-57cm
* Camera material: stainless steel & hard aluminum oxide housing
* Camera window: explosion-proof optical glass window
* Camera pixel:SONY CCD camera, fully automatic photosensitive system
* Lens Angle: side camera circumference 360° infinite rotate.
* Light: Front 8 or 9 highlight patches lamp beads, rear 8 or 24 LED strong light source bead.
* Brightness adjustment: operate the button on control box button, 5 levels of dimming.
* Focal Length: 75mm probe is adjustable.
* Probe pressure: 20MPA, max. pressure depth to 2000m.
Electric and Manual Vertical Detachable Winch
*Winch: 220V or 12V Battery Power(0-600m)
* Manually control the speed of lifting up and down via control box.
* Main control tray: stainless steel tray, removable and easy to transport
* Depth counting pulley: with depth sensor, can be used when connected with control box
*Pulley support rod: retractable and detachable
* Depth Counter: accurate to 0.005m
* Depth Zero: return depth to zero before logging to ensure accuracy.
* Motor: permanent magnet DC motor, self-locking

Probe Connector

Adopts axial seal and cross-section seal, two - layer
waterproof design, pressure resistant is 15MPA.

Centralizer

Stainless steel centralizer spring piece; Aluminum hard oxidation centralizer snap ring

Tools Box

Probe, connecting cable, centralizer, and other necessary accessories.
Machine at Workshop
