Multifunctional deep rock water drilling rig portable pneumatic mini borewell drilling rigs machine

1.0 Sets
MOQ
Multifunctional deep rock water drilling rig portable pneumatic mini borewell drilling rigs machine
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Farms, Home Use, Construction Works
Showroom Location: Indonesia, Pakistan, Thailand, South Korea, Chile, Bangladesh, South Africa, Uzbekistan
Condition: New
Type: Rotary Drilling Rig
Power Type: Diesel
Usage: Water Well
Voltage: 380v/220v/110v
Dimension(L*W*H): 2000*1200*1750mm
Weight: 2.6t
Warranty: 1 Year
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Pump, Engine, Gearbox
Key Selling Points: Flexible Manufacturing
Drilling Depth: 150M
Drilling Diameter: 130-203MM
Product Name: Deep Rock Water Drilling Rig Portable Pneumatic
Engine Power: 42KW
Walking Speed: 2.5KM/h
Gradeability: 30°
Rotation Speed: 65-100r/min
Swing Torque: 4500N.m
Maximum Lifting Force: 10-15ton
Maximum Rod Length: 2.4M
Local Service Location: Viet Nam, Philippines, Saudi Arabia, Indonesia, Argentina, Sri Lanka, Romania
After-sales Service Provided: Video Technical Support, Free Spare Parts, Online Support
Certification: ISO9001/CE
Basic Infomation
Certification: ISO9001/CE
Payment & Shipping Terms
Packaging Details: 20" container shipping of Multifunctional deep rock water drilling rig portable pneumatic mini borewell drilling rigs machine
Supply Ability: 500 Set/Sets per Day Multifunctional deep rock water drilling rig portable pneumatic
Product Description
Product Description
The product description about Multifunctional deep rock water drilling rig portable pneumatic mini borewell drilling rigs machine
HQZ series water well drilling rig is a lightweight, efficient and multifunctional drilling equipment , it is mainly applicable to industrial and civil drilling, geothermal drilling, has the advantages of compact structure, fast advancing, mobile and flexible wide application region etc.. It is especially suitable for water intake in mountainous and rocky strata.

Main Technical Parameters:
Drilling depth: 150m
Drilling diameter: 130-203mm
Engine Power: 42Kw
Technical Parameter
The Technical Parameters of Multifunctional deep rock water drilling rig portable pneumatic mini borewell drilling rigs machine

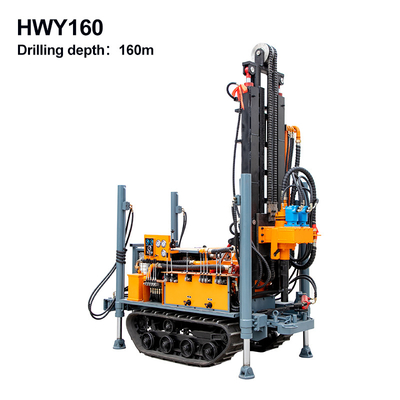

Model
HWY160
Drilling diameter
Φ130-Φ203mm
Drilling depth
150m
Walking speed
2.5KM/h
Gradeability
30°
Rotation speed
65-100r/min
Swing torque
4500N.m
Maximum lifting force
10-15ton
Maximum rod length
2.4m
Air consumption
10-25m2/min
Working air pressure
1.2-3.0mpa
Drill pipe diameter
Φ76-Φ89mm
Dimensions (L * W * H)
2000*1200*1750mm
Machine weight
2.6t
Products Details
Multifunctional deep rock water drilling rig portable pneumatic mini borewell drilling rigs machine
The rig can create drilling jobs in different strata, borehole diameter can up to 130-203mm. The rig with hydraulic technology, supporting high torque hydraulic motor rotation and large bore hydraulic cylinder push, the multi cylinder engine of famous factory provides power for the hydraulic system, two stage air filter, air compressor air intake design, prolong the service life of diesel engine. Special pump set design is convenient for maintenance and reduce the cost of maintenance. Centralized control of the hydraulic control table, convenient operation.
The series of drilling rig water adopts a excavator crawler chassis and has strong off-road performance. The independent module design allows the drill to be mounted on the truck to increase its mobility. Two speeds of rotating and advancing speed can meet the different needs of soil and rock drilling. Combined positioner, the positioning disc can be adjusted and replaced according to different types of drill pipe and impactor, so as to ensure the accuracy and reliability of the positioning and centering. The hoisting mechanism is convenient for hoisting of drill pipe and impactor, so as to reduce the labor intensity.
This drilling rig machine can be applied to various strata, used in water well engineering, geothermal well, anchor pile hole and so on, and can be used with follow-pipe drilling. It has the advantages of whole machine hydraulic control, automatic loading and unloading drill pipe, crawler type chassis, large horsepower diesel engine, four hydraulic support leg balance, stronger terrain application ability and so on.
Main advantage:
1. The engine we use is 42kw Chinese top brand Yuchai diesel engine 2. Chassis We use thickened industrial steel chassis with long service life, especially in mountainous areas 3. Using imported top brand hydraulic system and valves, full hydraulic operation is convenient and flexible, and the drilling speed, torque, axial pressure, counter axial pressure, and lifting speed of the drilling rig can be adjusted at any time to meet different operating conditions and construction requirements 4. Drill tower (we have 3 meters, 6 meters, or customized) 5. We use dual power heads to ensure fast and stable drilling speed and high drilling efficiency, which can drill approximately 30 meters per hour 6. High outrigger, easy to install 7. Large torque, more power 8. Top-drive rotary propulsion lifting: It is convenient to connect and unload the drill pipe and shorten the working time. 9. Multifunctional drilling: equipped with a variety of auxiliary tools, Mud pump: can realize water and steam dual purpose Welder: It can be welded when drilling the root canal Hoist: easy to lift the drill pipe 10. The whole machine adopts thick plates, the thickness can reach 10mm, the weight is 0.5ton more than other manufacturers, and the life span is 3-5 years longer than other manufacturers 11. We have a very authoritative certification, CE, ISO, SGS, TUV, BV 12. Our company has many patents for related products

HQZ180L Pneumatic drill rig

Drilling depth: 180m
Drilling diameter: 130-294mm
Engine Power: 42Kw

HQZ500L Pneumatic drill rig

Drilling depth: 500m
Drilling diameter: 140-400mm
Engine Power: 115Kw

TQZ200 Pneumatic drill rig

Drilling depth: 200m
Drilling diameter: 130-219mm
Engine Power: 40Hp

HW160 Hydraulic drilling rig

Drilling depth: 160m
Drilling diameter: 75-300mm
Rated Power: 13.2Kw

HW230L Hydraulic drilling rig

Drilling diameter: 75-325mm
Drilling depth: 230m
Rated Power: 15Kw

HW230C Hydraulic drilling rig

Drilling depth: 230m
Drilling diameter: 75-300m
Rated power: 14.7Kw

HW180D Sample Drilling Rig

Drill diameter: 40-120mm
Drill depth: 30m
Related power: 42Kw

HW416 DTH Drill Rig

Rated Power: 58Kw;
Drill Diameter: 90-127 mm
Weight: 4,500 kg
Construction Site
Multifunctional deep rock water drilling rig portable pneumatic mini borewell drilling rigs machine
The shipping details about the Multifunctional deep rock water drilling rig portable pneumatic mini borewell drilling rigs machine
Company Profile
Multifunctional deep rock water drilling rig portable pneumatic mini borewell drilling rigs machine
Jining Hengwang Mining Machinery Co., Ltd. is located in Jining, Shandong Province, China. Established in 2002, comprehensive enterprise, collection of marketing, scientific research, trade. Registered capital of 10.8 million, Existing staff 200 persons, including 3 engineering experts, senior software engineer 8 persons, network information technicians 28 persons, ecommerce division, more than 80 persons, the international trade commissioner, 18 persons, logistics division 9 persons, all kinds of technical personnel more than 50 persons.
