Waterproof / waterproof Vicam 500m borewell deep water dual well inspection camera with rotation function

1 Set
MOQ
Waterproof / waterproof Vicam 500m borewell deep water dual well inspection camera with rotation function
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: V10-BCS
Warranty: 1 Year
Special Features: Waterproof / Weatherproof
Sensor: CMOS
Style: Rotation Camera
Function: Waterproof / Weatherproof
Video Compression Format: H.265
Data Storage Options: SD Card
Application: Outdoor, Underwater Inspection
Customized Support: OEM, ODM
Use For: WaterWell Check
Camera Head: Rotation 360 Degree
Camera Material: Stainless Steel
Waterproof: 50 Bars
Cable Reel: Electric Cable Reel
Camera Diameter: 63mm
Monitor: 10 Inch Color Monitor
Cable Length: 200m,300m,400m,500m
Network: Wifi
Basic Infomation
Model Number: V10-BCS
Payment & Shipping Terms
Packaging Details: ABS Engineering Carrying Case and carton box
Product Description
Product Description

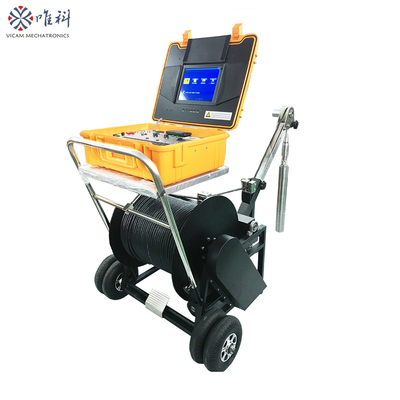

Vicam 360 degree 200m 300m 400m 500m cable Deep Water Well Borehole Inspection Camera with electric winch V10-BCS

1. Dual waterproof camera for deep well inspection
2. Dia.63mm x L610mm stainless steel 700TVL camera
3. IP68 waterproof ,up to 50Bars(underwater 500m)
4. 200m-500m twist wires cable with electric winch
5. Electric winch winding speed adjustable
6. HD DVR control box with Audio/video recording function
7.Built-in 128G Solid State Drives to storage video /Audio files
8. Built-in compass and temperature sensor
Main Part One:
Camera Head
*63mm L610mm Stainless steel casing
*Waterproof IP68 Operating depth 50 bars (725 PSI)
*Dual Camera Down & Side viewing
*Pan 360° rotate endless
* View angle 120°
*Sensor resolution PAL 720H×576V NTSC 720H×480V
*Horizontal resolution 700 TVL
*6 pcs high light LED (down view)
*6 pcs high light LED (side view)
Main Part Two:
Cable Reel
*Winding speed:0~20m/min
*Cable speed adjustable
*8.5mm twisted pair cable (200m-500m option)
*Power supply AC 110/AC230V, DC12~24V
*On screen depth encoder
*Electric cable rolling

Main Part Three: Control box

* 10" industrial screen monitor
* Display model 4:3
* Resolution 1024*768
* Menu language 9 languages optional
* Video input option: Pan & Tilt Camera or Borehole Camera
* Winch operating knob(adjusting speed,cable up and down, brake)
* Camera rotation control button
* Down camera and side camera LED brightness control button
* HD DVR Audio/Video record & playback
* Video storage Medium: Built in 128GB SSD or USB device
* Built in WIFI transmitter
* Using intelligent terminals as display and recording device
* Transmitter distance 30m
* Through WIFI wireless transmit video to Android, Apply OS or MID terminal
10"HD IPS LCD monitor
*Pixels:1024*768
*Display 4:3
*Menu language:English,French,
Spanish,Italian,German,Dutch
*Sun shield and remote control included

Our Advantages

1) 12 years experience in manufacturing and exporting,service will be more professional
2) 24-hour hotline,service more quick;
3) Large-scale production line, more rapidly delivery
4) Advance equipment , the quality are perfect
5) Professional foreign trade operations, services are more circumspect
Packing & Delivery
ABS Engineering Carrying Case and carton box
Company Profile
Our company is located at Shangxue Industrial Park in Shenzhen, South of China, specialized in the design, manufacture and assembly of video inspection systems. We have introduced the internationally advanced technology to design and produce various video inspection cameras. Most of our products are sold to Europe, America, Australia, Middle East, South Africa and South America market. In our company's developing process, we have got very important technical support from CYBERIA SAS, a world-class televisual inspection cameras provider and Shenzhen Institutes of Advanced Technology. Our main products range includes portable pipeline video inspection system, industrial and city underground pipe video inspection system, special video inspection camera and CCTV robot for complex applications and hazardous area rated environment. Our tenet is to rely on the advanced technology, meet the global market demands and provide good quality products and good service for all our customers!
Certifications
FAQ
1. who are we?
We are based in Guangdong, China, start from 2010,sell to North America(30.00%),Western Europe(20.00%),Eastern Asia(10.00%),Northern Europe(10.00%),South America(5.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Domestic Market(5.00%),Africa(3.00%),Oceania(2.00%),Mid East(2.00%),Southern Europe(2.00%),Central America(00.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Pipe inspection camera,Under water Inspection camera,Endoscope inspection camera,CCTV video inspection camera

4. why should you buy from us not from other suppliers?
Specialising in the design, manufacture and assembly of video inspection systems, we have introduced the international advanced technology, designed and produced various video inspection cameras.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,AUD,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese,Japanese,French
