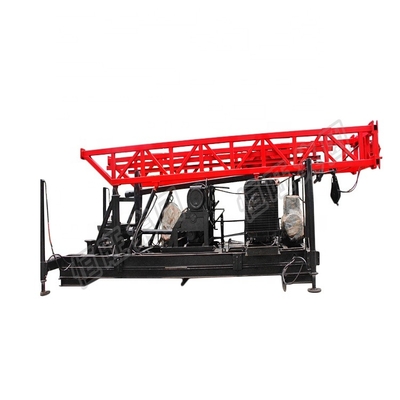

1,SPJ-300 water well drill rig is electric power , if electricity limit ,
also can change to diesel engine power.
2,The drill machine is bulk type rotary machine , Main usage use for fine particle geology , and normal is soft rock geology
3,When machine work use mud washing fluid (positive cycle), Spindle rotation then make drill tools put in motion. Use winch system make decompression drilling , promotion and demotion drill tools, running string. Impact sampling , promotion and demotion drill tower. and so on.
Diesel Engine Driven 300m water well drilling rig machine for sale use borewell used rigs in
| Model | SPJ-300 | SPJ-600 | |
| (mm) Drill Diameter | Φ500-1800 | Φ500-2500 | |
| (m) Drill Depth | 400-500 | 600 | |
| (kn/m) Maximum output torque | 18 | 18 | |
| Drive pipe(mm) | 108×108×4000 | 108×108×8000/108×108×12000 | |
| (mm) Drill pipe | φ89×4200, | φ89 | |
| main winch | Single rope lift | 30 | 35 |
| auxiliary winch | Single rope rated lift | 20 | 15 |
| Spindle inner diameter(mm) | Φ500-1200 | Φ605 | |
| Spindle revolving speed(r/min) | 40,70,128 | 42/75/134 | |
| Drill Mast vertical height(m) | 8.6 | 15 | |
| Weight (T) | 6.5 | 11 | |
| Dimension (mm) | 8400×2050×8000 | ||
